Panasonic（松下） PT-AX100 投影機(停產)

　  松下PT-AX100家用投影機配載了眾多的在色彩處理技術，能夠輸出高品質影像。松下新開發的純色彩濾光器（Pure Color Filter ）能帶來真正好萊塢圖像品質。動態iris和動態伽瑪校正技術可以帶來更加豐富和層次感更強的影像；

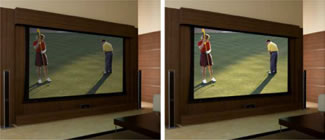

松下專有的“Smooth Screen”技術可以有效減少兩個像素間黑色線條對畫面的影響，從而帶來圓滑和電影膠片般畫面；

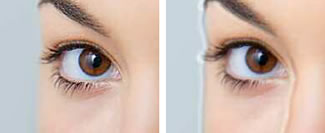

PT-AX100 Without Dynamic Sharpness Control

10位全數字處理和新的CCM電影彩色管理可以修正多達10億級的色彩，可以更好地展現運動畫面圖像；動態銳利度控制可降低圖像躁點，使圖像顯示更干凈、更自然；內置7種圖像模式，用戶還可以自己調整圖像色彩，得到您最喜歡的色彩；另外還有3/2 Pull Down電影模式和HD IP轉換功能

　松下PT-AX100家用投影機采用2倍速光學變焦距鏡頭，3米距離下能投射出100英寸的16：9畫面。投影機鏡頭具有移位功能：水平方向可移25％、垂直方向可移63％。還具有±30度梯形校正功能。采用了前排風設計和26 dB的低噪音設計。

接口配置也較豐富，包括HDMI、復合視頻、S端子、計算機VGA、色差等常用接口。遙控器也進行了全新設計，使用更加簡單和方便。

PT-AX100 LCD *1 panel Panel size 0.7" diagonal (16:9 aspect ratio) Display method Transparent LCD panel (x 3, R/G/B) Drive method Active matrix Pixels 921,600 (1,280 x 720) x 3, total of 2,764,800 pixels Pixel configuration Stripe Lamp *2 220 W UHM™ lamp Brightness 2,000 lumens Center-to-corner uniformity ratio 85% Contrast 6,000:1 *3 (full on/full off, dynamic iris on) Lens Manual zoom/focus lens (1:1 -1:2), F 1.9-3.1, f 21.7-43.1 mm Projection size 40–200 inches (1,016 - 5,080 mm) diagonally, 16:9 aspect ratio Throw distance 1.2–12.4 m (3'11" - 40'8") (16:9 aspect ratio) Optical axis shift *4 Horizontal: ±25%, vertical: ±63% Keystone correction range Vertical: approx. ±30° Installation Ceiling/floor, front/rear Scanning frequency S-Video/Video fH 15.75 kHz, fv60 Hz (NTSC, NTSC4.43, PAL-M, PAL60) fH 15.63 kHz, fv50 Hz (PAL, PAL-N, SECAM) PC (RGB) fH 30–70 kHz, fv50–87 Hz YPBPR (YCBCR) 480i (525i): fH 15.75 kHz, fV 60 Hz 480p (525p): fH 31.5 kHz, fV 60 Hz 576i (625i): fH 15.63 kHz, fV 50 Hz 576p (625p): fH 31.25 kHz, fV 50 Hz 720/50p (750/50p): fH 45 kHz, fV 60 Hz 720/60p (750/60p): fH 37.5 kHz, fV 50 Hz 1080/24p (1125/24p): fH 27.0 kHz, fV 24 Hz 1080/50i (1125/50i): fH 28.125 kHz, fV50 Hz 1080/50p (1125/50p): fH 56.3 kHz, fV 50 Hz 1080/60i (1125/60i): fH 33.75 kHz, fV 60 Hz 1080/60p (1125/60p): fH 67.5 kHz, fV 60 Hz Terminals HDMI IN 19-pin HDMI connector x 1 S-VIDEO IN Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms VIDEO IN RCA pin x 1, 1.0 Vp-p, 75 ohms PC(RGB) IN D-sub HD 15-pin (female) x 1, R, G, B 0.7 Vp-p (1.0 Vp-p for Sync on G), 75 ohms HD/SYNC, VD TTL, high impedance (positive/negative polarity) COMPONENT IN RCA pin (Y, PB/CB, PR/CR) x1 Y 1.0 p-p, 75 ohms PB, PR (CB, CR) 0.7 Vp-p, 75 ohms SERIAL IN Mini DIN 8-pin (female) x 1, for external control (RS-232C compliant) On-screen menu languages English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese, Thai
